6FC5203-0AF04-0AA1 OP 010S

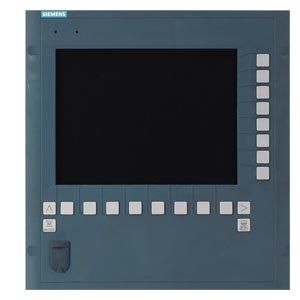

SINUMERIK 前操作面板 OP 010S，10.4" 配有機械按鍵
概述
SINUMERIK OP 010S 操作員面板前端配備了一個 640 x 480 像素（VGA）的 10.4" TFT 彩色顯示屏，有 8 + 4 個水平機械軟鍵和 8 個垂直機械按鍵。
SINUMERIK KB 310C 全數控鍵盤適合用作用作輸入鍵盤。
操作員面板前端采用供貨范圍內包括的專用夾子后面固定。
優勢
節省空間的操作控制和監視
可選的 SINUMERIK KB 310C 全數控鍵盤操作舒適可靠
設計
SINUMERIK OP 010S 操作員面板通過扁平帶狀電纜連接到 SINUMERIK PCU (SIMATIC IPC for SINUMERIK)。
接口：
1 個 USB 1.1 接口，A 型（前置）
2 根扁平帶狀電纜，用于連接 PCU
集成
SINUMERIK OP 010S 操作面板前端可以用于：
SINUMERIK 840D sl：
NCU 710.3B PN/NCU 720.3B PN/NCU 730.3B PNSINUMERIK PCU (SIMATIC IPC for SINUMERIK)
SINUMERIK TCU 30.3
技術規范
Article number | 6FC5203-0AF04-0AA0 | |
|---|---|---|
Product brand name | SINUMERIK | |
product short term | OP 010S | |
product designation | Operator panel front | |
screen diagonal | 10.4 in () | |
design of the display | TFT color VGA | |
Screen resolution of the display | 640 pixel × 480 pixel | |
supply voltage at DC | 5 V | |
| Via PCU or TCU | |
Active power consumption | ||
| 10 W | |
| 16 W | |
Degree of protection | ||
| IP54 | |
| IP00 | |
environmental category acc. to IEC 60721-3-3 | Condensation and icing excluded. Low air temperature 0 °C (32 °F). | |
Relative humidity at 25 °C (77 °F), during | ||
| 5 ... 95 % | |
| 5 ... 95 % | |
| 5 ... 95 % | |
Ambient temperature, during | ||
| -20 ... +55 °C (-4 ... +131 °F) | |
| -20 ... +55 °C (-4 ... +131 °F) | |
| ||
| 0 ... 45 °C (32 ... 113 °F) | |
| 0 ... 55 °C (32 ... 131 °F) | |
width | 310 mm (12.20472 in) | |
height | 330 mm (12.99213 in) | |
depth | 45 mm (1.77165 in) | |
| Without USB protective cover on the front | |
installation depth | 35 mm (1.37795 in) | |
| Clearance + 10 mm (0.39 in) | |
Mounting surface | ||
| 285 mm (11.22047 in) | |
| 304 mm (11.9685 in) | |
net weight | 5.5 kg (12.12542 lb) | |
certificate of suitability | CE / cULus | |
