6FC5203-0AF02-0AA2 OP 012

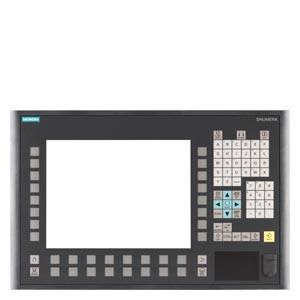

SINUMERIK 前操作面板 OP 012，12.1" 帶薄膜按鍵和觸控板
概述
SINUMERIK OP 012 操作員面板配有一個帶 LED 背光且分辨率為 800 × 600 像素（SVGA）的 12.1" TFT 彩色顯示屏，一個 59 鍵的薄膜按鍵盤； 2 排水平軟鍵（每排 8 + 2 個）和 2 排垂直軟鍵（每排 8 個）。集成式觸控板提供了新的操作控制方式。2 x 8 個垂直軟鍵可用作 PLC 的直接按鍵。
操作員面板前端采用供貨范圍內包括的專用夾子后面固定。
優勢
借助于 12.1" TFT 彩色顯示屏，監視和操作十分方便
LED 背光提高了能效
集成式鍵盤和觸控板，易于操作
設計
SINUMERIK OP 012 操作員面板通過扁平帶狀電纜連接到 SINUMERIK PCU (SIMATIC IPC for SINUMERIK)。
接口：
1 個 USB 1.1 接口，A 型（前置）
2 根扁平帶狀電纜，用于連接 PCU
集成
SINUMERIK OP 012 操作員面板可用于：
SINUMERIK 840D sl：
NCU 710.3B PN/NCU 720.3B PN/NCU 730.3B PNSINUMERIK PCU (SIMATIC IPC for SINUMERIK)
SINUMERIK TCU 30.3
技術規范
Article number | 6FC5203-0AF02-0AA2 | |
|---|---|---|
Product brand name | SINUMERIK | |
product short term | OP 012 | |
product designation | Operator panel front | |
screen diagonal | 12.1 in () | |
design of the display | TFT color SVGA with LED backlight | |
Screen resolution of the display | 800 pixel × 600 pixel | |
supply voltage at DC | 5 V | |
| Via PCU or TCU | |
Active power consumption | ||
| 5 W | |
| 6 W | |
| Without load on the USB interface | |
Degree of protection | ||
| IP65 | |
| IP00 | |
environmental category acc. to IEC 60721-3-3 | Condensation and icing excluded. Low air temperature 0 °C (32 °F). | |
Relative humidity at 25 °C (77 °F), during | ||
| 5 ... 95 % | |
| 5 ... 95 % | |
| 5 ... 95 % | |
Ambient temperature, during | ||
| -20 ... +55 °C (-4 ... +131 °F) | |
| -20 ... +55 °C (-4 ... +131 °F) | |
| ||
| 0 ... 45 °C (32 ... 113 °F) | |
| 0 ... 55 °C (32 ... 131 °F) | |
width | 483 mm (19.01575 in) | |
height | 310 mm (12.20472 in) | |
depth | 30 mm (1.1811 in) | |
| Without USB protective cover on the front | |
installation depth | 20 mm (0.7874 in) | |
| Clearance + 10 mm (0.39 in) | |
Mounting surface | ||
| 450 mm (17.71654 in) | |
| 290 mm (11.41732 in) | |
net weight | 5 kg (11.02311 lb) | |
certificate of suitability | CE / cULus | |
